Product description
SCD trough conveyor is a kind of equipment specially used for horizontal and inclined conveying dry granular materials, widely used in building materials, metallurgy, chemical industry and other industries. With its high adaptability (large inclination, long distance), modular design and high reliability, it is ideal for granular material handling. You can select different models according to their specific needs and optimize efficiency by adjusting the conveying speed or tilt angle.
SCD trough conveyor is mainly composed of the following parts:
1. Transmission device: Adopt hard gear reducer, equipped with hydraulic coupler to prevent motor overload, install backstop to avoid reverse when inclined arrangement.

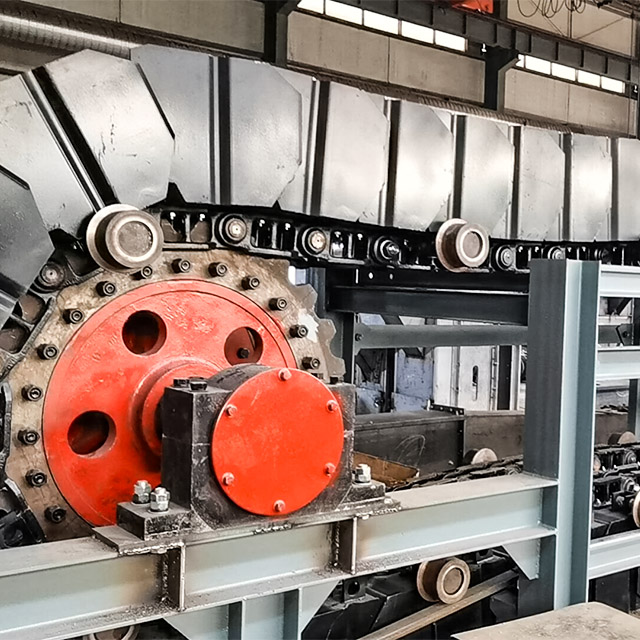

2. The head unit: contains removable type sprocket (divided into gear ring and wheel), adopt an odd number of double teeth design life extension, easy to maintain.
3. The tail device: spring tensioning device adjust the chain tension.
4. Run: structure of the separation of bearing and traction, roller through the bearing support, reducing the traction effect on material.
5. Safety protection device: including pull switch and speed monitor (SCM - type 1), to ensure timely abnormity status while machine be shut down.
Advantage

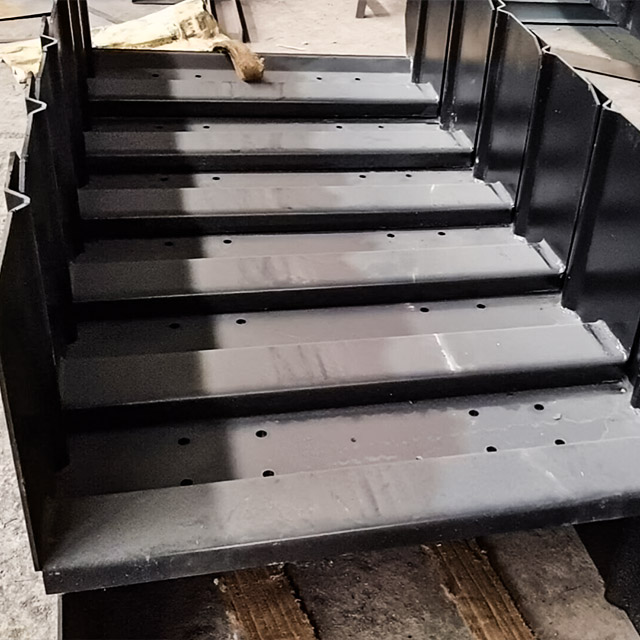

1. Structure design: - bearing and traction separation, reasonable force, smooth operation. - head sprocket using separation design, easy to maintain replacement. Hopper cold pressing molding, high temperature resistant, no leakage material
2. Materials and life: - drag chain using die forging chain plate, high wear resistance, long service life, hopper material carbon steel, optional stainless steel.
3. Long conveying distance: conveying distance within 100 meters of optional.
Application
Applicable industry: cement clinker, slag, limestone and other dry granular material transportation.
Tilt Angle: support horizontal and inclined (60 ° or less), especially suitable for working condition of large dip angle of ascension.
