Product description
Efficient bucket elevator is a new product designed and manufactured by introducing the world's advanced technology. It can meet the market's needs for new efficient bucket elevators with large conveying capacity, large lifting height and compact structure.
Advantage
1. Large capacity, high lifting height and stable operation.
2. The traction part adopts steel wire core tape with characteristics of high tensile strength, good toughness, no extension. And the service life of traction parts can reach more than five years.
3. Adopt centrifugal mixing type unloading and digging type loading.
Application

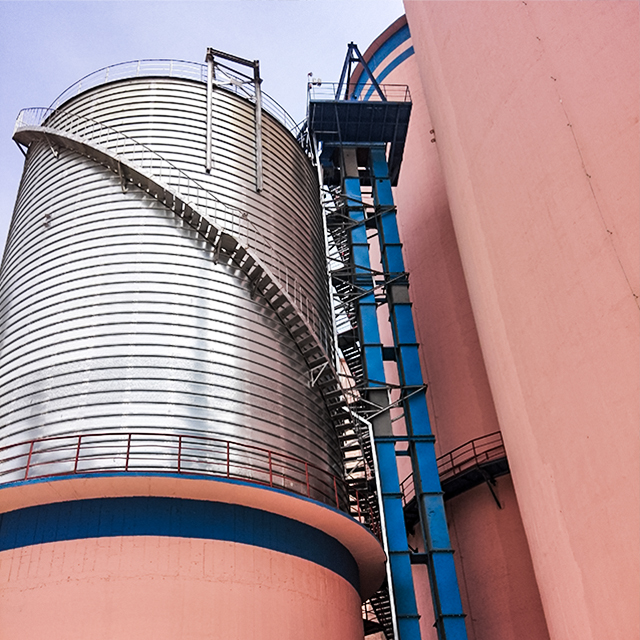

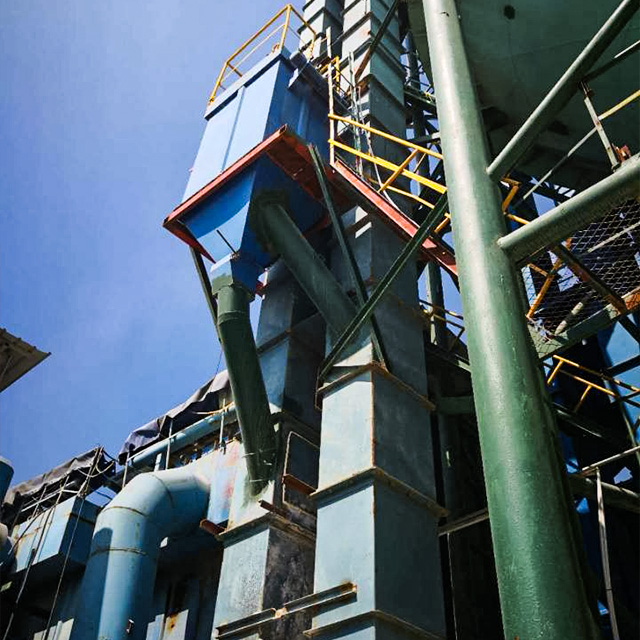

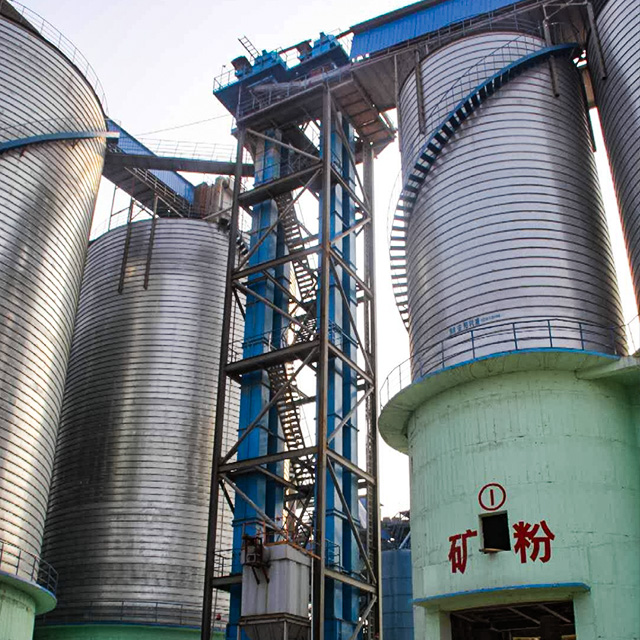

It is used for the vertical transportation of dry bulk materials,and can be widely used in the material transportation system of building materials, chemical industry, coal, electricity.port transportation and other industries.
Technical parameter
Model | TDG250 | TDG315 | TDG400 | TDG500 | TDG630 | TDG800 | TDG1000 | TDG1250 | TDG1400 | TDG1600 |
Capacity(m3) | 46-65 | 102-133 | 135-175 | 177-228 | 250-327 | 321-416 | 459-600 | 645-850 | 840-1100 | 1020-1335 |
Bucket volume(L) | 4.2 | 8.6 | 13.5 | 17.5 | 27.5 | 35 | 55 | 73 | 99 | 114 |
Bucket width(mm) | 250 | 315 | 400 | 500 | 630 | 800 | 1000 | 1250 | 1400 | 1600 |
Bucket pitch(mm) | 350 | 350 | 420 | 420 | 520 | 520 | 650 | 720 | 760 | 820 |
Speed(m/s) | 1.5 | 1.5 | 1.5 | 1.5 | 1.7 | 1.7 | 1.7 | 1.9 | 1.9 | 1.9 |
Lifting height(m) | 80 | 100 | 100 | 100 | 120 | 120 | 130 | 130 | 130 | 130 |
