Product description

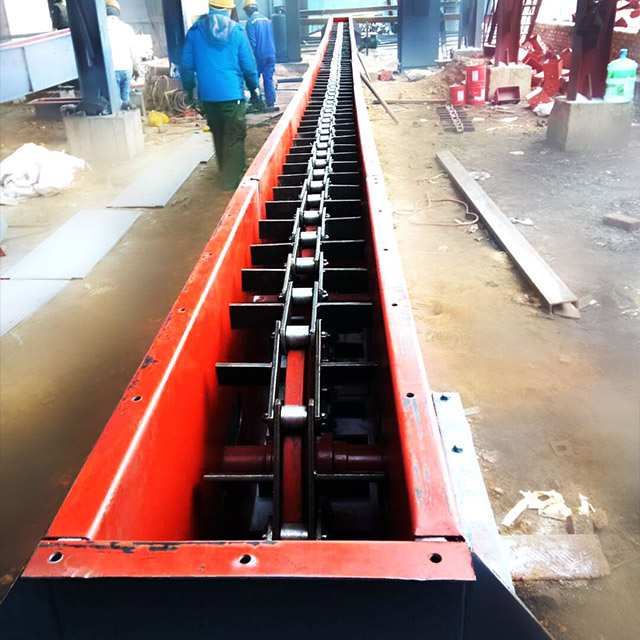

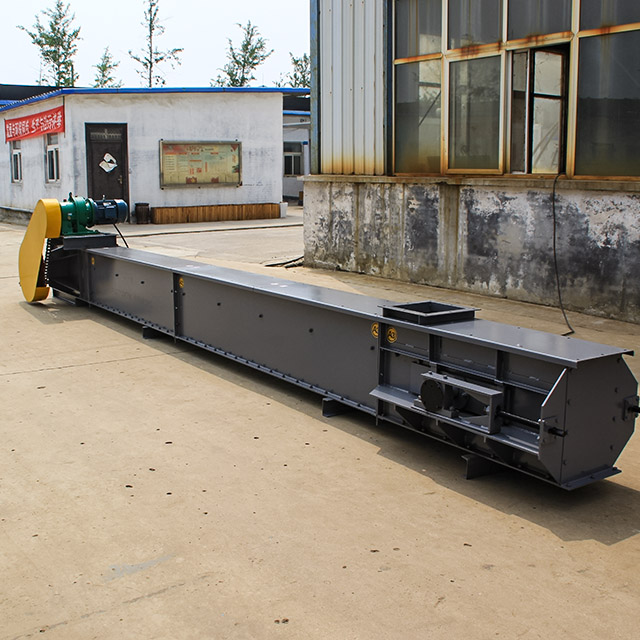

FU drag chain conveyor (referred to as "chain conveyor" ) is a device for horizontally(or inclined 15) conveying powder, and small granular materials. It has the features of novel structure,reasonable design, reliable operation, and long service life, lt is also energy saving and efficient. The entire material is transported in the sealed box, so the dust rarely overflows.
Advantage
1.Large conveying capacity,up to 6- 300m'/h.
2.Low energy consumption for transportation. The internal frictional force of the material is used to push the material forward, which saves 40%-50% of electricity compared with the screw conveyor.
3.The sealing is good and safe, and the fully-sealed casing makes the dust rarely overflow.
4.Long service life, The specially ordered conveyor chain uses high-quality steel and undergoes special heat treatment. The normal service life can reach more than 5 years.
5.Flexible process layout and multi-point feeding and discharging.
Application
It is used for horizontally transporting powdery and small granular materials, and is widely used in construction materials construction, chemical industry, thermal power, grain processing, mining, machinery, smelting, port and transportation industries.
Technical parameter
Model | Width(mm) | Particle size(mm) | Slant angle | Capacity(m3/h) | Moisture ratio(%) | ||||||
Speed(m/min) | |||||||||||
10 | 12 | 13.5 | 15 | 16 | 20 | 25 | |||||
FU150 | 150 | ＜8 | ≤15° | 6-9 | 25-36 | 9-13 | 12-18 | 15-23 | ≤5% | ||
FU200 | 200 | ＜10 | 12-16 | 40-56 | 18-24 | 24-32 | 30-40 | ||||
FU270 | 270 | ＜15 | 21-30 | 55-80 | 28-40 | 31-45 | 34-48 | 42-60 | 52-75 | ||
FU350 | 350 | ＜18 | 80-100 | 54-75 | 72-100 | 90-125 | |||||
FU410 | 410 | ＜21 | 70-100 | 75-130 | 105-150 | ||||||
FU500 | 500 | ＜25 | 105-145 | 140-200 | 160-225 | ||||||
