Product description

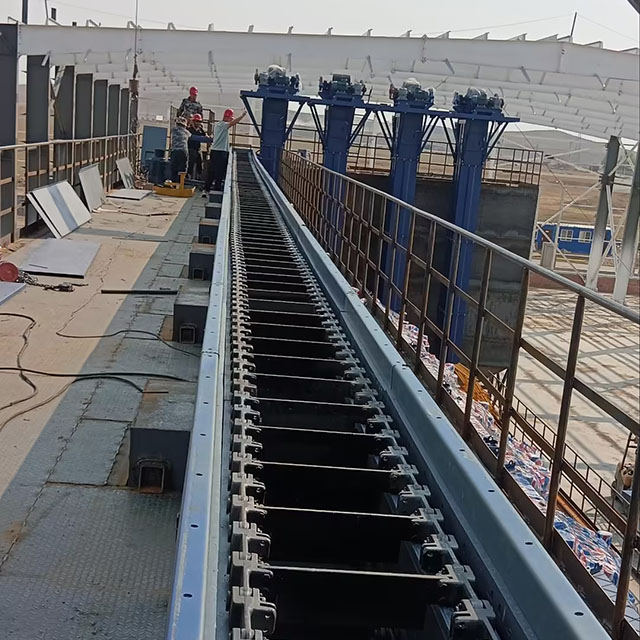

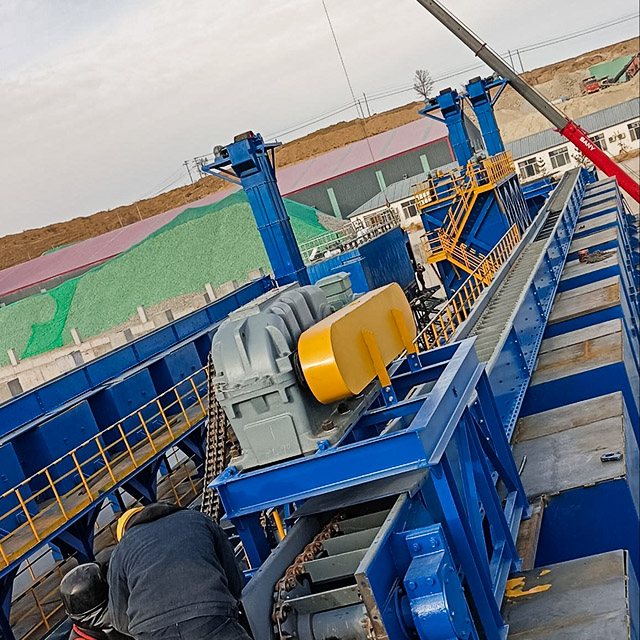

The MS type buried scraper conveyor is the conveying equipment designed by our factory to absorb the advanced foreign technology,it is often used for conveying granular and powdery materials. It can be used for inclined conveying, and the tilt angle is less 15 degrees. It is unique in conveying toxic,explosive, high temperature and easy to fly materials, and improving working conditions and operating conditions and reducing environmental pollution.
Advantage

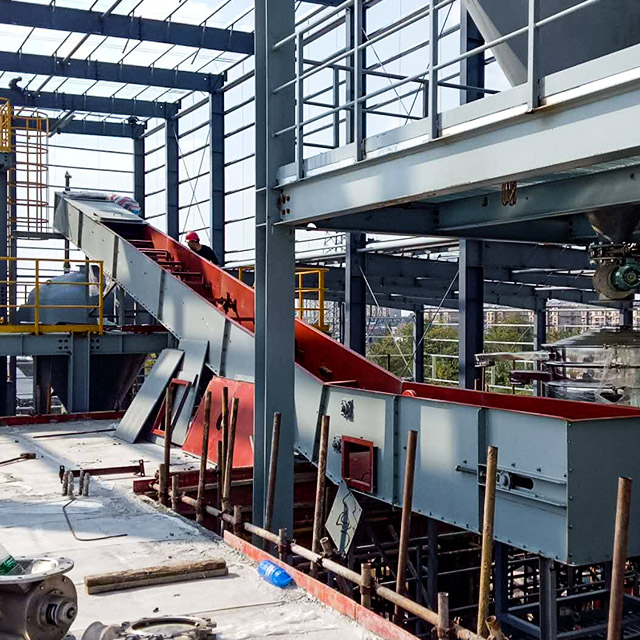

1. The conveyor can be installed by horizontal or sloping.
2. The conveyor has compact structure, small volume, lightweight, and can be installed multiple inlet and outlet opening.
3. Full seal conveying, especially suitable for conveying ash, toxic, explosive materials, improve working conditions, prevent environmental pollution.
4. Easy to install, low maintenance cost.
Application
It is widely used in metallurgy, building materials, electric power,chemical industry,cement,port & wharf, coal, mine.grain and oil.food,feed and other industries and sectors.
Technical parameter
Model | MS12 | MS16 | MS20 | MS25 | MS32 | MS40 | MS50 | MS63 | |
Groove width(mm) | 120 | 160 | 200 | 250 | 320 | 400 | 500 | 630 | |
Depth(mm) | 120 | 160 | 200 | 250 | 320 | 400 | 500 | 630 | |
Capacity(m3/h) | 7-12 | 11-25 | 17-39 | 23-54 | 48-88 | 67-124 | 105-192 | 166-300 | |
Max.length(m) | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 | |
Chain | Model | DT | DT | DT | DT( | 3002T | 3003T | 3003T | 3003T |
Allowable load(KN) | 15 | 17 | 26 | 35(45) | 45 | 75 | 100 | 2x75 | |
Ref.weight(kg/m) | 5.5 | 5.62 | 7.2 | 12.2(15.63) | 15.63 | 23.24 | 25.34 | 47.6 | |
Speed(m/s) | 0.16-0.32 | 0.16-0.32 | 0.16-0.32 | 0.16-0.32 | 0.2-0.32 | 0.2-0.32 | 0.25-0.32 | 0.25-0.32 | |
