Product description

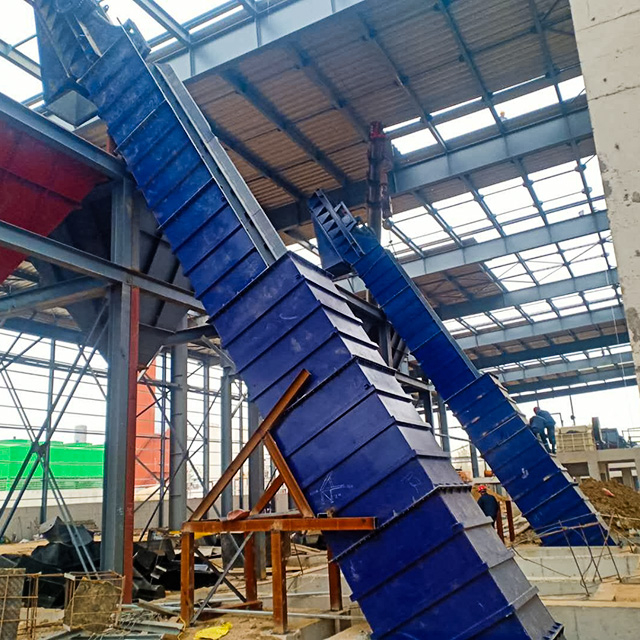

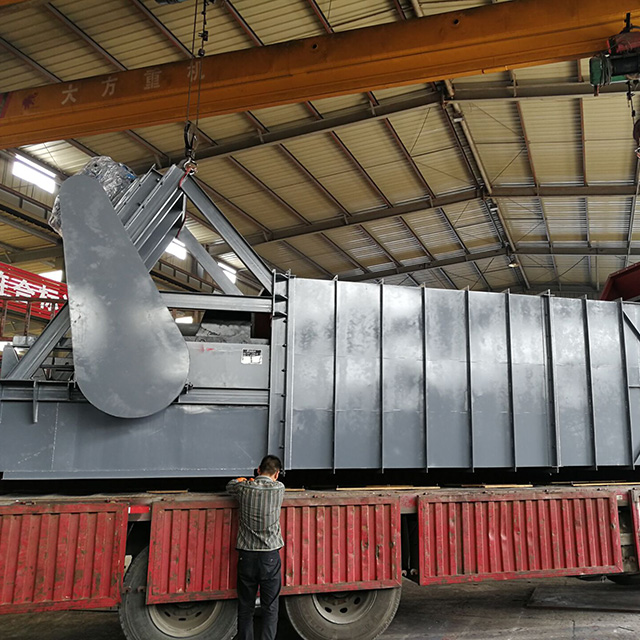

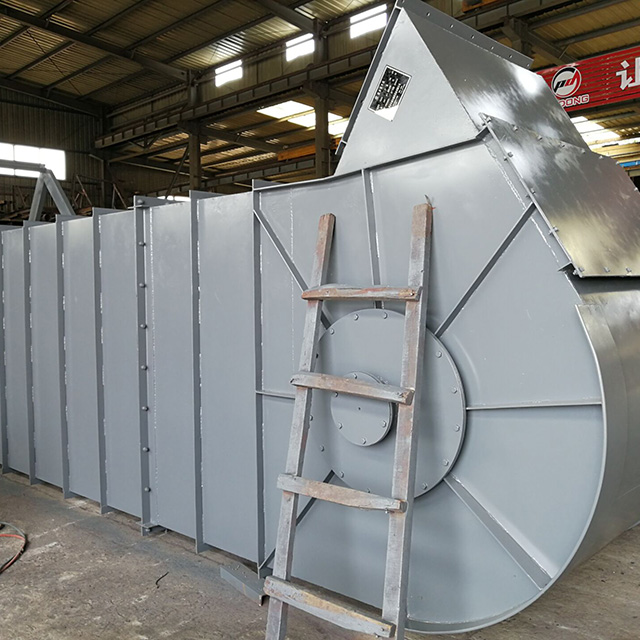

The dewatering bucket elevator is one of the commonly used mechanical equipment in coal preparation plants and calcium magnesium phosphate fertilizer plants. It has the advantages of simple structure and reliable operation.
Advantage
1. Compact structure, large lifting height and easy maintenance.
2. Stable operation and good dewatering effect.
3. The bucket capacity per meter is basically increased by equal steps, which is beneficial to equipment selection.
Application
It's used for conveying materials with high water content, it can be widely used in mining, chemical and other industries.
Technical parameter
Model | Hopper width(mm) | Length(m) | Slant angle(°) | Capacity(t/h) | Speed(m/s) | Power(kw) |
T3240 | 400 | 20 | 55-70 | 15.3-51.6 | 0.16, 0.27 | 4-11 |
T3260 | 600 | 20 | 55-70 | 23-77.5 | 0.16, 0.27 | 5.5-11 |
T4060 | 600 | 23 | 55-70 | 28.7-96.8 | 0.16, 0.27 | 5.5-15 |
T4080 | 800 | 23 | 55-70 | 38.3-129.2 | 0.16, 0.27 | 7.5-18.5 |
T40100 | 1000 | 23 | 55-70 | 47.8-161.4 | 0.16, 0.27 | 11-37 |
T50100 | 1000 | 26 | 55-70 | 59.8-201.8 | 0.16, 0.27 | 11-37 |
T50120 | 1200 | 26 | 55-70 | 11.3-242.8 | 0.16, 0.27 | 11-55 |
T50140 | 1400 | 26 | 55-70 | 83.7-282.5 | 0.16, 0.27 | 15-55 |
L3240 | 400 | 20 | 60-70 | 15.9-56.9 | 0.16, 0.27 | 4-11 |
L4060 | 600 | 23 | 60-70 | 31.8-80.4 | 0.16, 0.27 | 7.5-15 |
L40100 | 1000 | 23 | 60-70 | 53-134 | 0.16, 0.27 | 11-30 |
L50120 | 1200 | 26 | 60-70 | 79.2-200.4 | 0.16, 0.27 | 11-55 |
L50140 | 1400 | 26 | 60-70 | 92.4-233.7 | 0.16, 0.27 | 15-55 |
