Product description

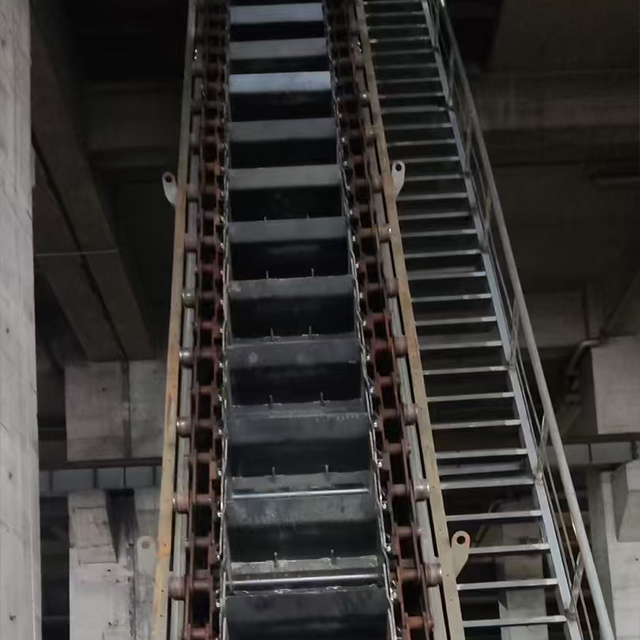

Chain bucket conveyor is a machine for horizontal or inclined conveying materials along the track of the hopper. It is popular by end users with flexible layout, large conveying capacity, long service life, small maintenance, low operating cost, large conveying angle and so on.

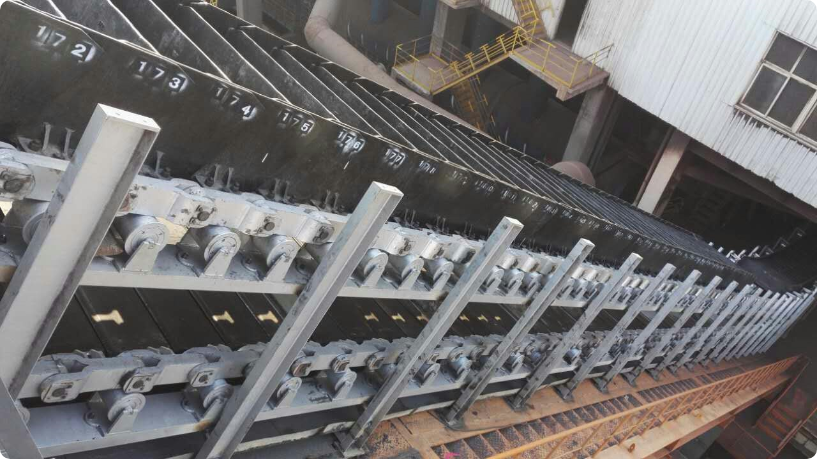

Video
Application

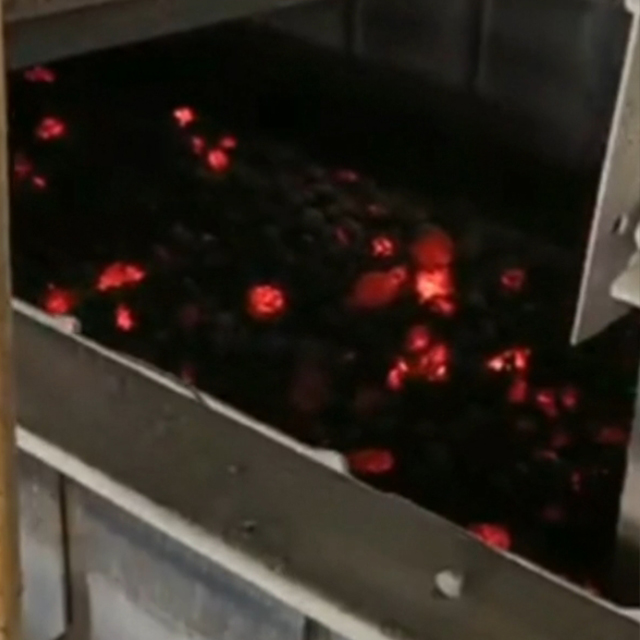

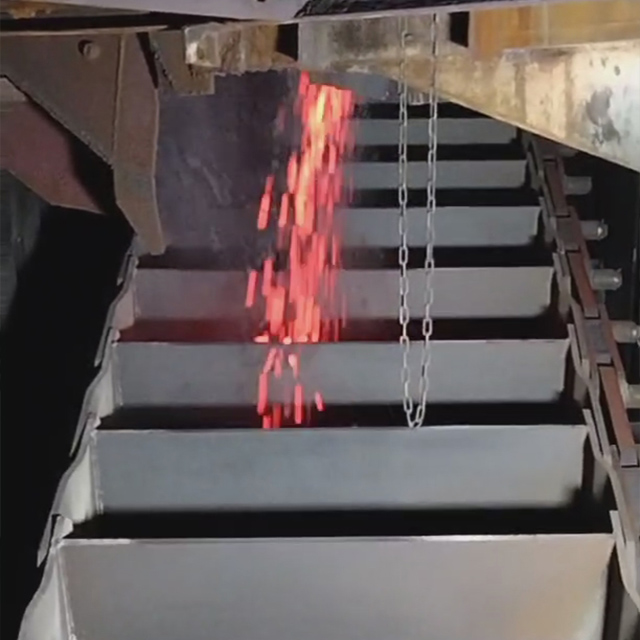

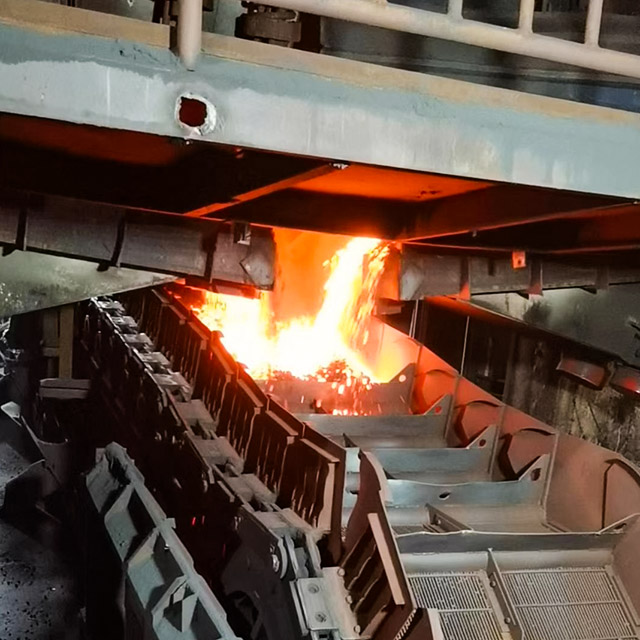

Chain bucket conveyor is widely used in power station, mining, coal and other industries of various loose materials conveying, such as boiler ash, cement clinker, slag, coke, gravel, especially some high temperature, large volume, large block, with sharp angle and grinding.
Feature
1. According to different operating occasions, the chain bucket conveyor is divided into open type, semi-closed type and fully closed type.
2. Using high strength double row heavy plate chain produced by professional chain manufacturers, which is prolong service life.
3. The spring screw tensioning device can automatically adjust the tensioning force of the traction chain, especially suitable for long distance and heavy load conveyor.

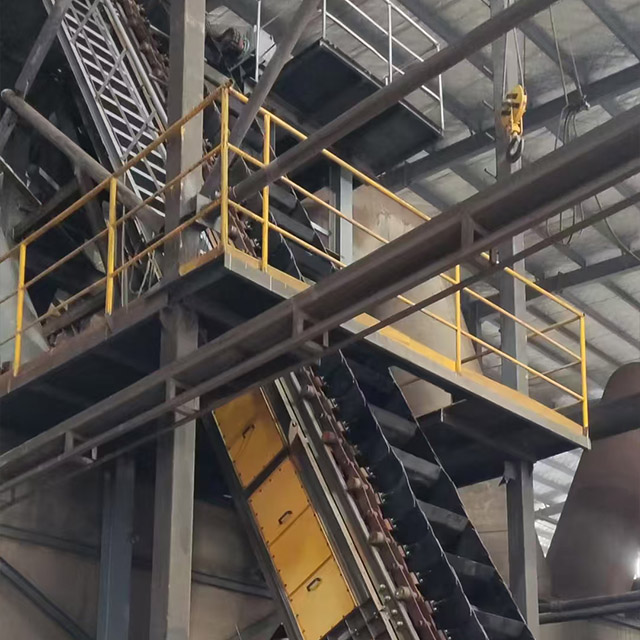

4. The process layout is flexible and customized. It can be set up in high position, on the ground or under the pit. It can be horizontal or diagonal installation, can also be horizontal and diagonal installation.
Main components& features
1, head part
2, drive unit
3, carrier assembly
4, inclined middle support
5, upper track
6, under track
7, tail sprocket
8, tail frame
9, screw tension device
Technical parameter
Model | Bucket width (mm) | Chain speed | Capacity (m3/h) | ||
β≤20° | 20°＜β≤40° | 40°＜β≤60° | |||
LD-350×L | 350 | 3.5-17.5 | 14-70 | 7-35 | 5-25 |
| LD-450×L | 450 | 3.5-17.5 | 18-90 | 9-45 | 6-30 |
| LD-630×L | 630 | 3.5-17.5 | 24-120 | 12-60 | 9-45 |
| LD-800×L | 800 | 3.5-17.5 | 32-160 | 16-80 | 11-55 |
| LD-1000×L | 1000 | 3.5-17.5 | 40-200 | 20-100 | 14-70 |
