Product description

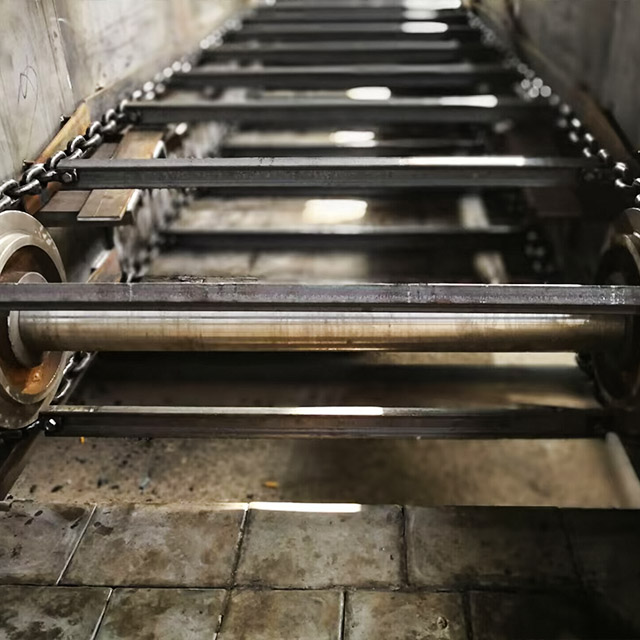

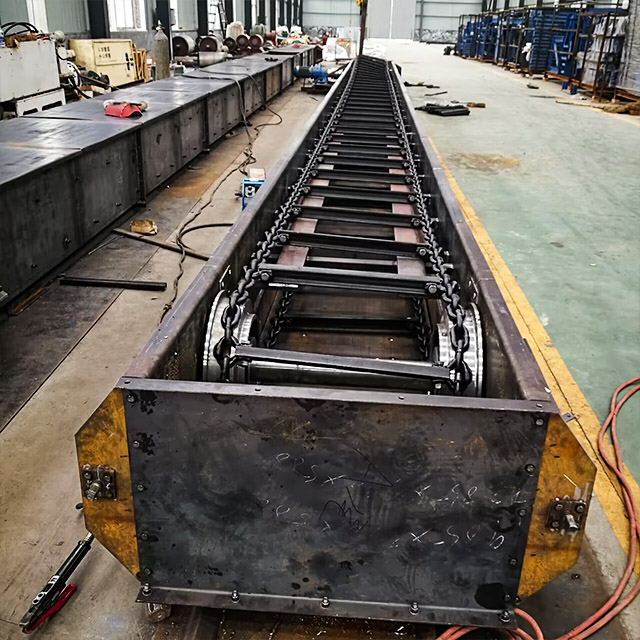

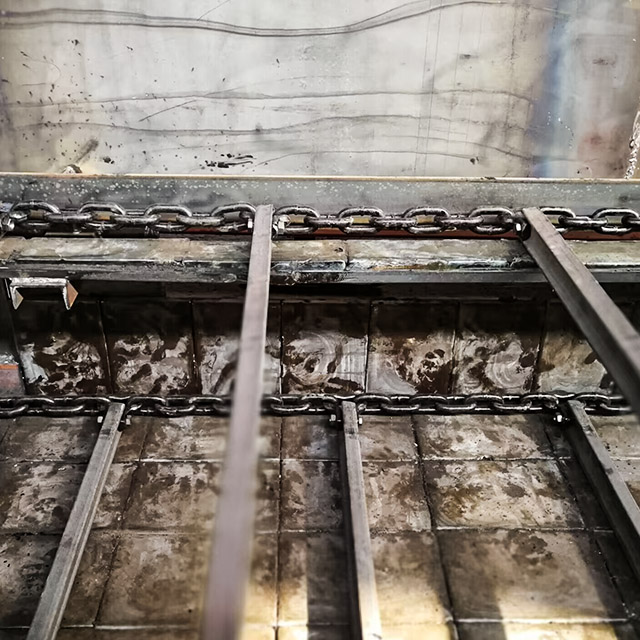

XGZ type cast-stone scraper conveyor is a heavy cast-stone conveyor developed according to the specific situation of coal preparation plant and coal mine ground production system. It is mainly used for horizontal transportation, but it can also be used for sloping transportation, with its maximum tilt angle is 20 degrees.
Advantage
1. It is mainly used for horizontal transportation, but it can also be used for sloping transportation.
2. The conveyor includes the head section, transition section, middle sections, scraper device, tail section and drive device etc. It's max, length is 64.3m, the middle sections is 1.1-2.1m per section.
3. The conveyor can be installed multiple inlet and outlet opening, to convenient for loading and unloading.
Application
The cast-stone scraper is suiting for the closed transport of powder, granular, small size and mixed materials with the temperature below 250°. It is mainly used for horizontal transportation, but it can also be used for sloping transportation. It’s max. tilt angle is 20 degrees. It is mainly applicable to transporting the various materials, and it can be applied to transporting the materials in mines, metallurgy, coalmines and chemical industries that have no high requirements on water content. The particle size of the system is less than 300mm.
Technical parameter
Specification | XGZ-06 | XGZ-08 | XGZ-10 | XGZ-12 | XGZ-14 |
Capacity(t/h) | 100-300 | 200-500 | 300-600 | 400-800 | 500-1000 |
Speed(m/s) | 0.48-0.76 | 0.48-0.76 | 0.48-0.76 | 0.48-0.76 | 0.48-0.76 |
Length(m) | 6.7-64.3 | 8.2-64.3 | 8.6-43.6 | 8.9-63.5 | 8.6-53.6 |
Particle size(mm) | ＜200 | ＜300 | ＜300 | ＜300 | ＜300 |
Scraper width(mm) | 600 | 800 | 1000 | 1200 | 1400 |
Scraper pitch(mm) | 1024 | 1024 | 1024 | 1024 | 1024 |
